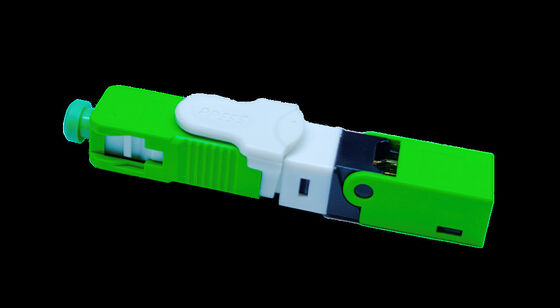

Quick Sc Apc Adapter Single Mode Fiber Sc Connector CE Certificated
  • name
  • name
  • name

Quick Sc Apc Adapter Single Mode Fiber Sc Connector CE Certificated

MOQ: 100
Price: Negotiable
Delivery Period: 5-8 work days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
deyou
Certification
CE ISO9001
Model Number
5508
Highlight:

CE Sc Apc Adapter

,

CE Single Mode Fiber Sc Connector

,

Quick Sc Apc Adapter

Product Description
Product Name: SC Quick Filed Assembly Fiber Optic Connector Insertion Loss: Max ≤0.5dB, Average≤0.3dB
Return Loss: SM≥50dB ; MM≥25dB Color: Green, Blue, Beige, Aqua, Violet
Application: FTTH FTTB FTTX Network Connector Type: SC , UPC , APC , PC
Fiber Cable Type: 3.0 X 2.0 Mm Drop Cable , 2.0*1.6mm Drop Cable Packing: 3000PCS/CTN, Carton Size: 60*35*39cm
GW: 17.8KG/CTN Material: Plastic
Lead Time: 3-7 Working Days Certificate: CE, ROHS, REAH, ISO9001, ISO14001
Highlight:

FTTH Fiber Optic Connector

,

FTTH sc fast connector

,

FTTX Fiber Optic Connector

Product Description

SC Quick Field Assembly Fiber Optic Connector SC Fast Connector For FTTH FTTX



SC Quick Filed Assembly Fiber Optic Connector is also called Field Assembly Connector or Field terminated fiber connector or quickly assembly Fiber connector.



SC Quick Filed Assembly Fiber Optic Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process.



Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



SC Fiber Optic Fast Connector Optical Characteristics:



Category Specification Remarks
Aoolicable for 3.0mm×2.0mm(Drop cable.Indoor cable)
2.0mm×1.6mm(Drop cable.Indoor cable)
Fiber mode Single mode or Multi mode
Operation time About 50(no fiber cut)
Insertion Loss dB ≤0.5
Insertion Loss Typical value dB 0.3
Return Loss dB ≥45
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature ℃ -40～+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3



Environmental performance requirements:





Category

 Specification
Condition IL Variation RL Variation Appearance
High TEMP 110℃,200H ≤0.5 ≤5





No mechanical damage, like

deformation, cracking and untight
Low TEMP -40℃,200H ≤0.5 ≤5

TEMP

Cycling

 -40～85℃,3.5H/Cle, 100C ≤0.5 ≤5
HAST 110℃,90%RH,200H ≤0.5 ≤5
Immersion 25℃,200H ≤0.5 ≤5
Salt Mist

5% Nacl,6.5＜PH＜

7.5,35℃,200H

 ≤0.5 ≤5



Mechanical Performance Requirements:





Category

 Specification
Condition

IL

Variation

RL

Variation

 Appearance



Impact

Height: 4m；

1 drop each axis；

3 cycles



≤0.5



≤5





No mechanical damage, like deformation, cracking and untight



Vibration

Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm；

Duration:30min each axial



≤0.5



≤5





Torsional

Pull:15N；

The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min.

Times: 200





≤0.5





≤5





Tensile

Pull:50N；

The distance between Loadi ng location and fast conn ector: L = 22-28cm； Duration:1min.





≤0.5





≤5







SC Fiber Optic Fast Connector Features:



  • No epoxy and polishing required
  • Quick and easy fiber termination
  • Precision mechanical alignment insures low insertion loss
  • Superior optical performance
  • Streamlined component design, convenient operation
  • Pre-installed, on-site assembly without end face grinding and consideration
  • Uses proven, molded v-groove technologies
  • Allow optical continuity to be verified by use of visual fault locator (VFL)



SC Fiber Optic Fast Connector Applications:



  • Fiber optic communication system and telecommunication networks
  • Fiber optic data transmission
  • CATV
  • Optical access

SC Fiber Optic Fast Connector Packing Pictures:

Quick Sc Apc Adapter Single Mode Fiber Sc Connector CE Certificated 0Quick Sc Apc Adapter Single Mode Fiber Sc Connector CE Certificated 1



Why choose TAKFLY--Advantages as follows:

Professional manufacturer:

  • With more than 12 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 5 years experienced;
  • More than 36 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.
